4 Pin Male D Code M12 Ethernet Cable PUR Jacket 5m UL Approval

Product Categories
Dongguan Cableforce Electronics Co., Ltd
Contact Now

4 Pin Male D Code M12 Ethernet Cable PUR Jacket 5m UL Approval

  • 1
  • 2

Brand Name : CABLEFORCE

Model Number : YM2D24-020PN1XLEAX

Certification : UL Certified, CUL Certified, CE/ EMC, IP67, IP69K

Place of Origin : Guangdong, China

MOQ : 100

Price : Negotiated

Payment Terms : T/T

Supply Ability : 60000 pcs/month

Delivery Time : 2~3 weeks

Packaging Details : Our standard packing: Individual part with transparent PE bag with label, OEM packing available.

Contacts Poles : 04 Pin

Cable Length : 2M

Application : Ethernet Cat 5e

Over-molding : TPU

Connector Gender : Male connector

Cable Jacket : PUR

Keyway Coding : D-Coding

Cable Color : Green

Contact Now

4 Pin Male D Code M12 Sensor Actuator Ethernet Cable PUR Jacket 5m Ul Approval

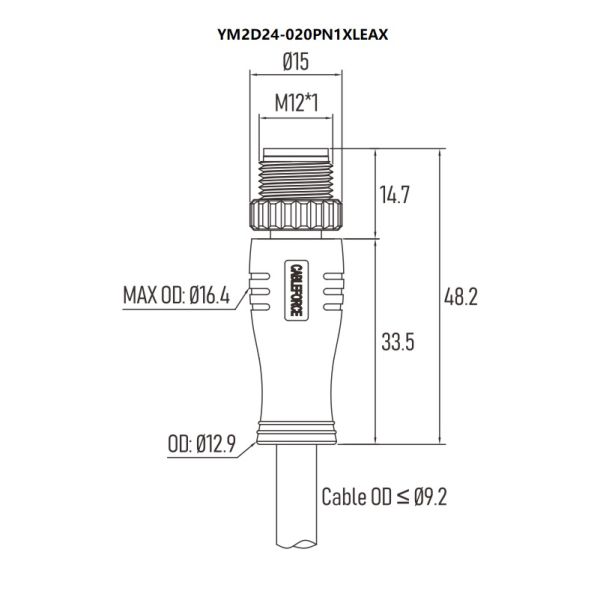

Connector Technical Data
Part No. YM2D24-020PN1XLEAX
Connectors No. 4Pin
Application Ethernet Cat 5e
Color Green
Rated Voltage 250V
Impulse voltage 2500V
Length 5 M
Insulation Resistance ≥100MΩ
Contact Resistance ≤5mΩ
Termination Soldering
Contact Male: Brass, Female: Phosphor bronze
Protection Degree IP67,IP68
Description
M12 circular connectors with M12 locking thread for Automation, Process control, Industrial Ethernet, Railway CCTV, Boat cabling etc.. The Series of CABLEFORCE M12 connector offers many different cable connectors configuration, panel- mounted receptacles, field attacheable installable connectors with industry-standard A,B,D,X,S,T,K,L and Y keyway coding options.

CABLEFORCE Products Features

● IP67 IP68 IP69 and UL approvals

● Shielded version
● Anti-vibration locking screw design
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● Application : Ethernet Cat 5e SFTP
● Current rating : 4A

● Operation voltage : 250V

● Cable length : customized
● RoHS, REACH compliant.

FAQ

● What is PUR cable material?

A PUR cable is a flexible, silicone, and halogen-free cable with PUR outer sheath polypropylene conductor insulation. It is oil and flame resistant and can be used in drag chain applications with minimal bend radius.

● What is CAT5e Cable?

CAT5e, also known as Category 5e or Category 5 Enhanced, is a network cable standard ratified in 1999. CAT5e offers significantly improved performance over the old CAT5 standard, including up to 10 times faster speeds and a significantly greater ability to traverse distances without being impacted by crosstalk. CAT5e cables are typically 24-gauge twisted pair wires, which can support Gigabit networks at segment distances up to 100 m.
● CAT5e vs CAT6 Speed?
Because CAT6 cables perform up to 250 MHz which is more than twice that of CAT5e cables (100 Mhz), they offer speeds up to 10GBASE-T or 10-Gigabit Ethernet, whereas CAT5e cables can support up to 1GBASE-T or 1-Gigabit Ethernet.

4 Pin Male D Code M12 Ethernet Cable PUR Jacket 5m UL Approval

4 Pin Male D Code M12 Ethernet Cable PUR Jacket 5m UL Approval
